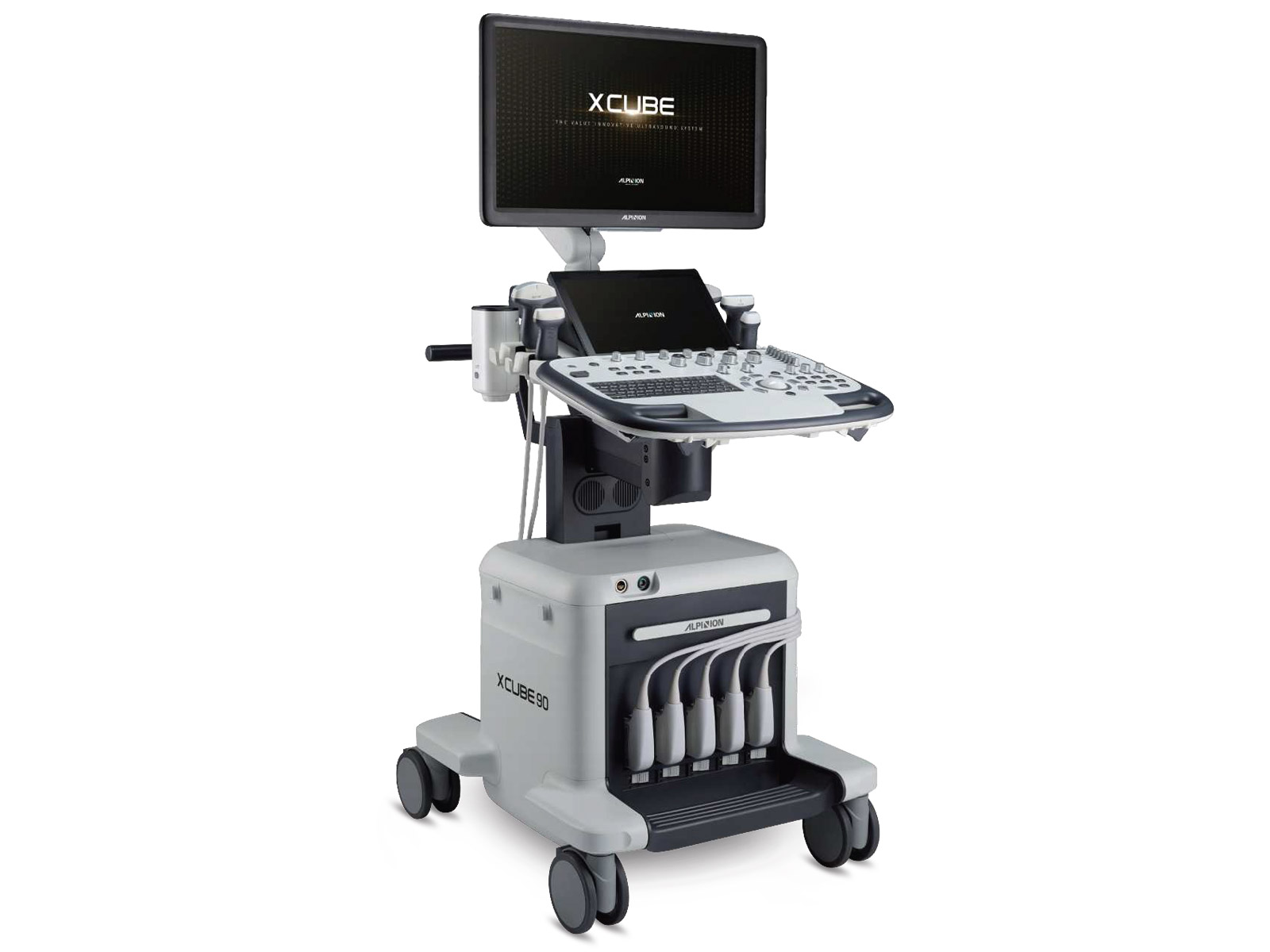

ALPINION X-Cube 90 Diagnostic Ultrasound System

ALPINION X-Cube 90 Diagnostic Ultrasound

Exceptional value in your patient care

X-CUBE offers the highest level of efficiency and insight for healthcare providers, enabling you to utilise clear and detailed images and a comfortable user interface.

X-CUBE 90 reflects the needs of fields that require quick and accurate diagnosis. With ALPINION's amassed image processing technology and the latest diagnostic solution, more precise diagnosis and quicker decisions are now possible. Improve the quality of your diagnosis with X-CUBE 90.

Auto measure & Assistant solution

X-CUBE 90 is a newly created premium diagnostic system developed with ALPINION's state-of-the-art technology. It integrates a one-probe solution with high-resolution and wideband, a seamless transducer and X+ FIT, which is an imaging technology.

Powered by X+ Architecture

X+ Architecture is a premium imaging platform created by combining X+ Crystal signature™, the transducer technology with high sensitivity and wideband, and X+ FIT, ALPINION's cutting-edge beamforming and data processing technology. X+ FIT is a new technology that transmits ultrasound beams sharply, receives a large volume of data and processes it at high speed. In addition, X+ Crystal signature™ applies a single crystal and our own special material in the transducer to achieve excellent clarity and extend insight.

eXpanded Capability

X-CUBE 90 is designed to provide objective and accurate diagnoses based on expanded technology. Intelligent clinical features upgrade diagnostic accuracy to new levels. Broaden your skills and range of capabilities.

ALPINION X-Cube 90 Specifications

• Superior X+ Architecture imaging quality

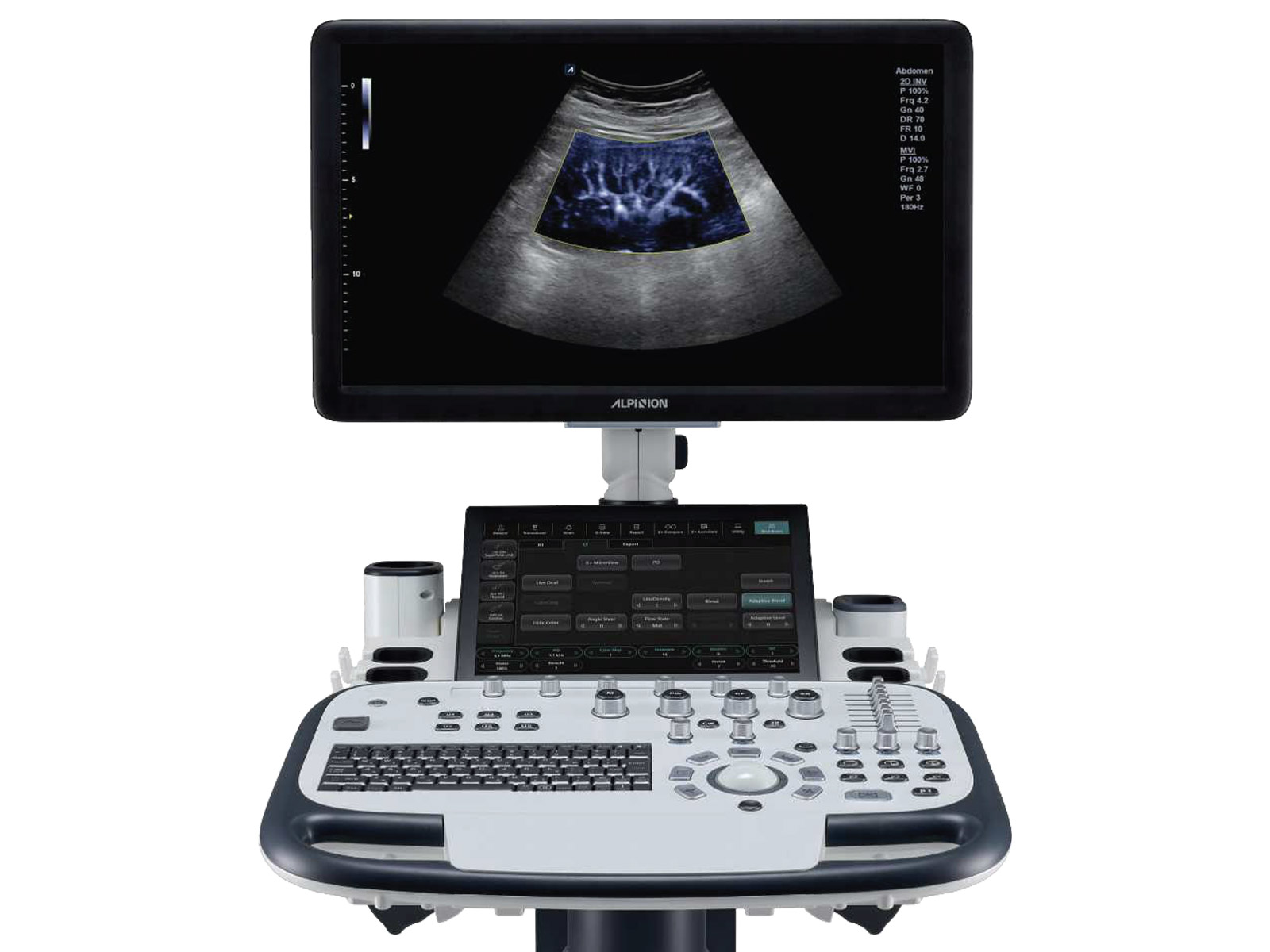

• 23 inch FHD LED Screen

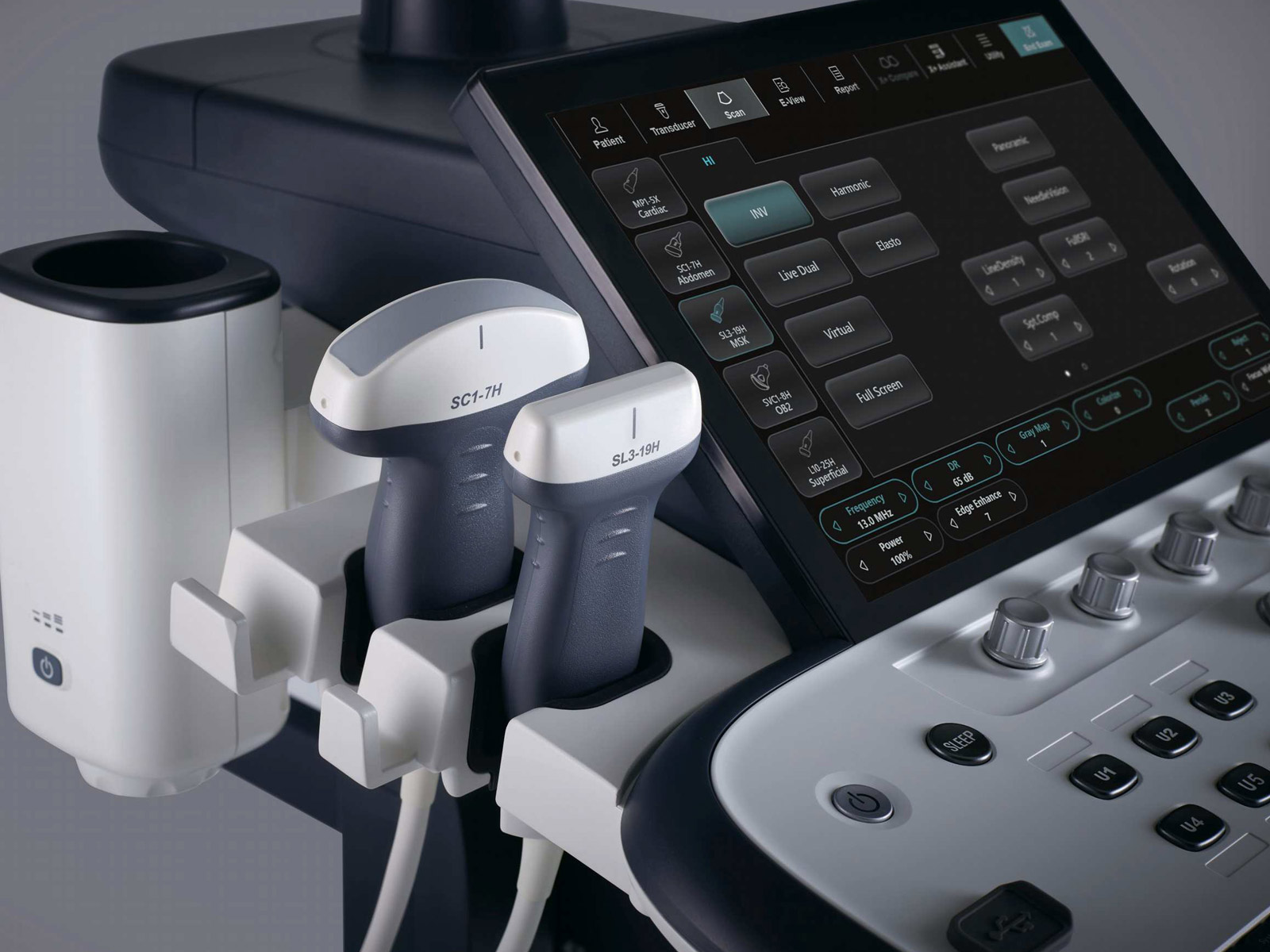

• 12.1 inch tilting LCD colour touch panel
• Motorised control panel
• 5 Transducer connectors
• X10 data transmission speed
• X14 data processing speed
• Higher frame rate
• Increased sensitivity & penetration
• Dimensions: 580mm x 835mm x 1440~1605mm (W x D x H). Weight: 85kg

ALPINION X-Cube 90 Features & Benefits

X+ MicroView

MicroView is the vascular imaging mode that displays micro blood flow

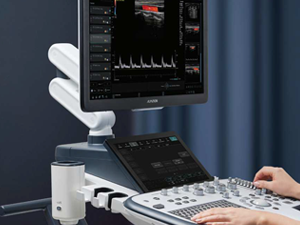

X+ Assistant

With the use of a harmonic signal processing technique, it has minimised signal loss, improving the bandwidth of the signal transmitted from the transducer

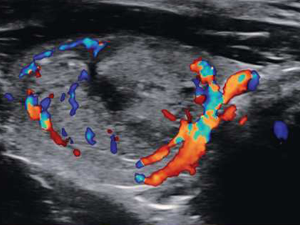

Directional Power Doppler Imaging

Information related to the direction of blood flow and sensitivity of Colour Doppler

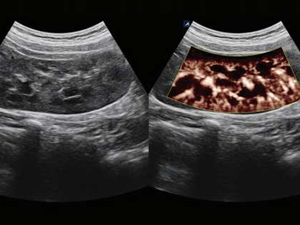

Contrast enhancement ultrasound

Diagnose patients using angiographic patterns after administering a contrast medium

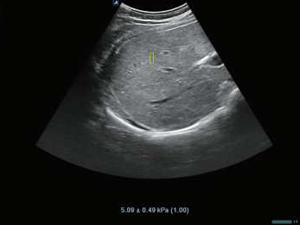

Point shear wave elastography

Shows objective quantified stiffness of tissue using the focused ultrasound beam

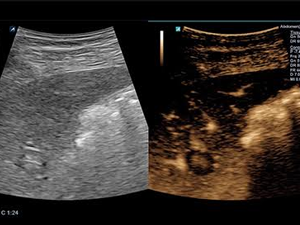

X+ Compare

Import patients' previous studies for comparison when scanning and reviewing

Antivirus Solution

Automatic virus scanning means your patients' information is always protected.

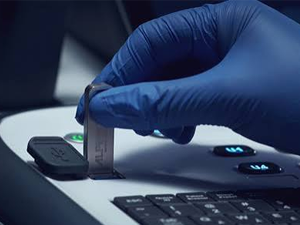

USB real-time recording

Record high-definition ultrasound scan videos on USB memory in real-time

Training and Education

Full product training support and access to the DUS education pathways.

X+ Fit

X+ FIT is a beamforming technology which improves resolution, frame rate, and uniformity. X+ FIT utilises massive parallel beamforming whose architecture is capable of transmitting 4 times larger volume with 10 times faster capacity and also processing data 14 times faster than our previous model (E-CUBE 15 Platinum). X-CUBE 90's high-resolution imaging is a prerequisite for accurate diagnoses and quick decision-making.

X+ Crystal signature™

Upgraded single crystal and a special material matching layer and backing material allow heat dissipation and minimalize signal loss. ALPINION's signature transducer technology allows you to experience insightly clear image quality with high sensitivity and wideband, which shows significant improvements in image resolution, contrast, and uniformity. ALPINION develops and manufactures its own transducers, the key to ultrasound imaging.

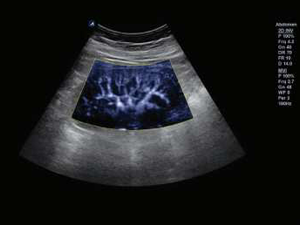

X+ MicroView

X+ MicroView is the vascular imaging mode which displays micro blood flow. Users can observe the low-speed blood flow of tiny blood vessel. With this technology, low-speed blood flow areas which users previously couldn't see on Color Doppler are shown at the fast frame rate.

X+ pSWE

Point Shear Wave Elastography shows objective quantified stiffness of tissue using the radiation force from a focused ultrasound beam. Users can identify significant liver fibrosis non-invasively, so it reduces unnecessary biopsies and increases patient satisfaction. Especially X+ pSWE ensures the highest reliability of measured results by displaying the Reliability Index.

CEUS (Contrast Enhancement Ultrasound)

This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease.

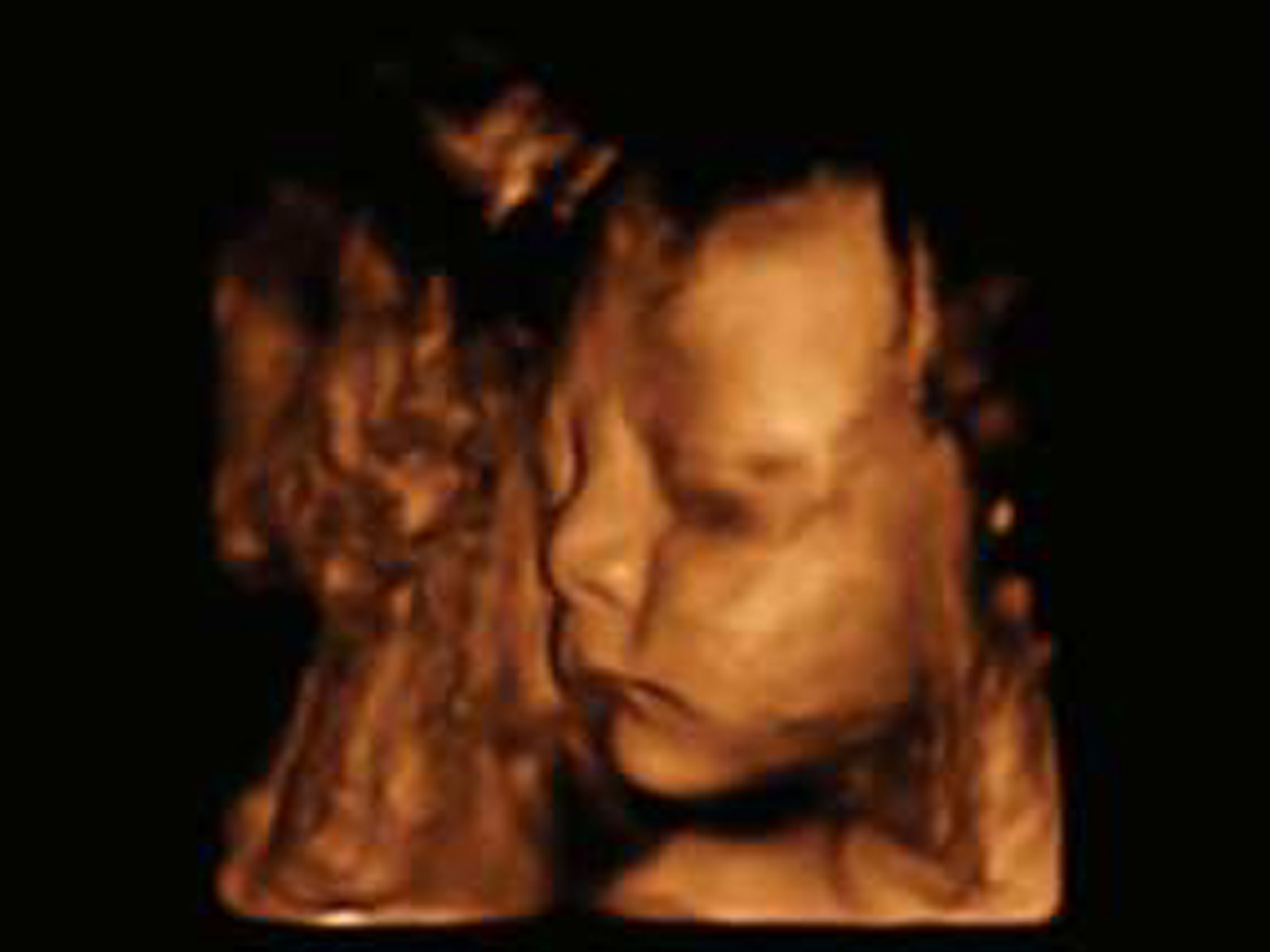

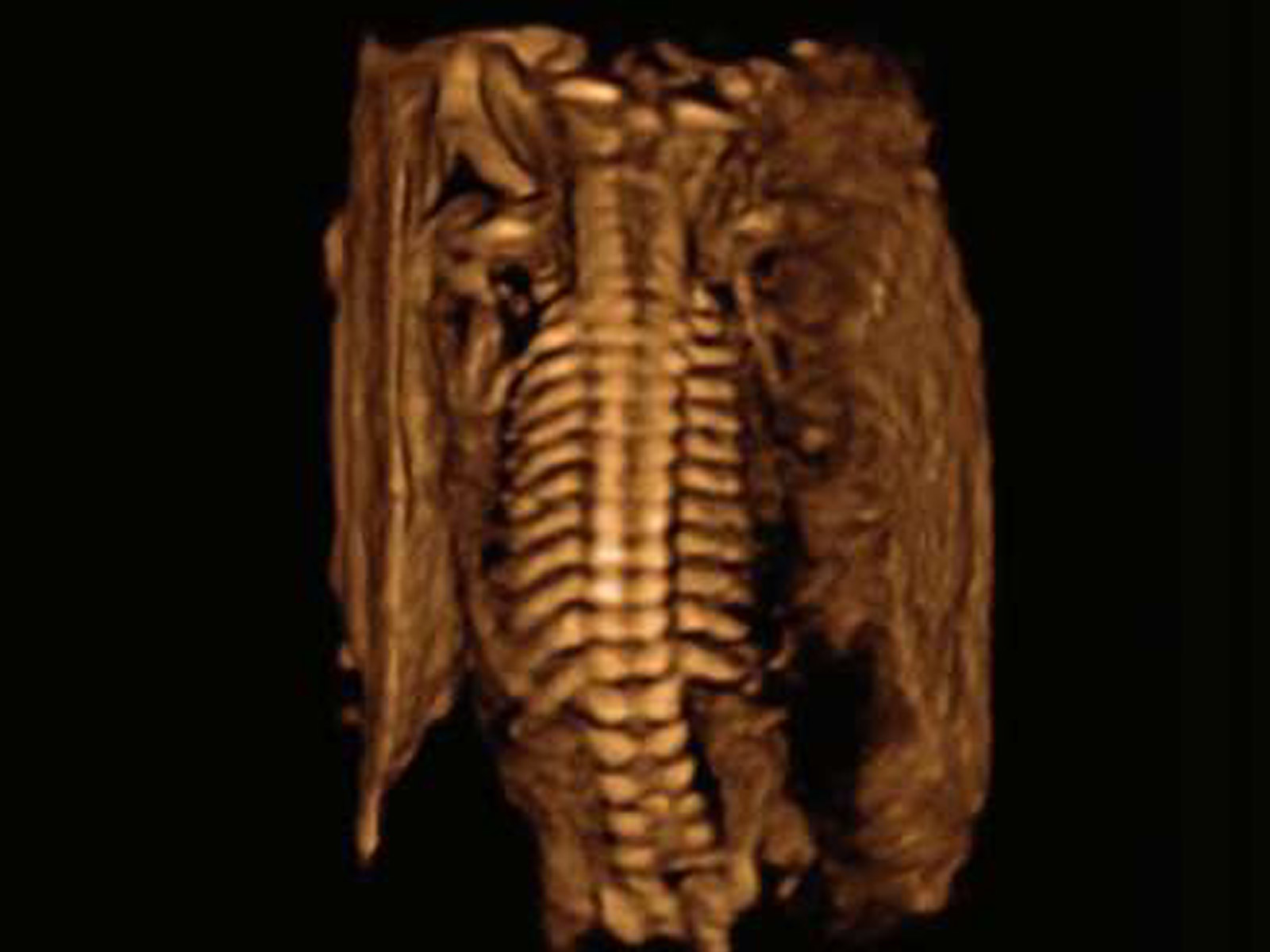

Silhouette Imaging

This new technology provides silhouette outlines of the human fetus and other structures clearly. By using Live HQ technology with a shadowing effect, Silhouette imaging technology allows to delineate the outlines of structures behind the directly visualized structure.

Take your patient care to the next level!

Get in touch with us if you want the newest technology to improve patient care. To learn more about Medical Devices, please complete and submit this form.
