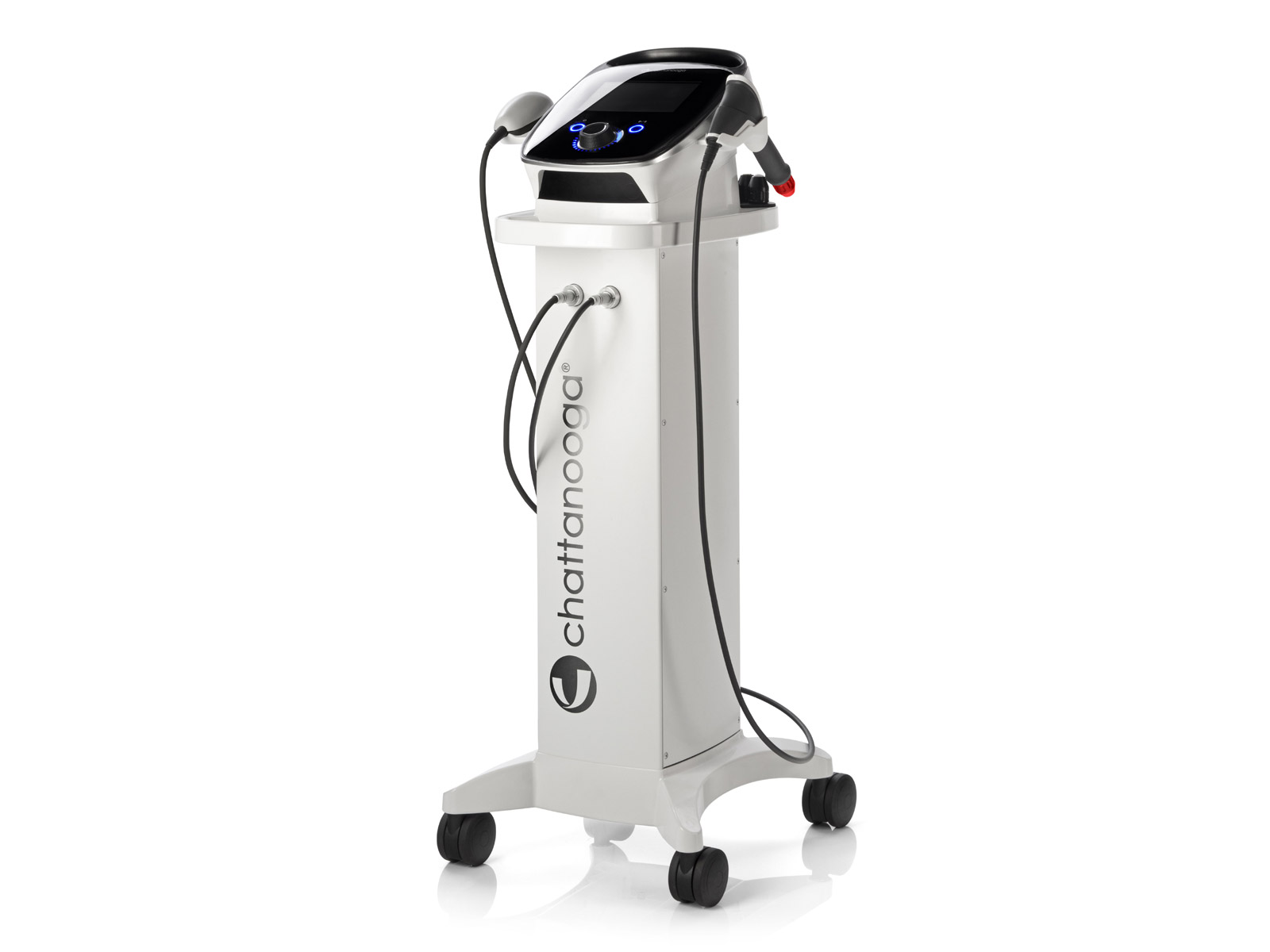

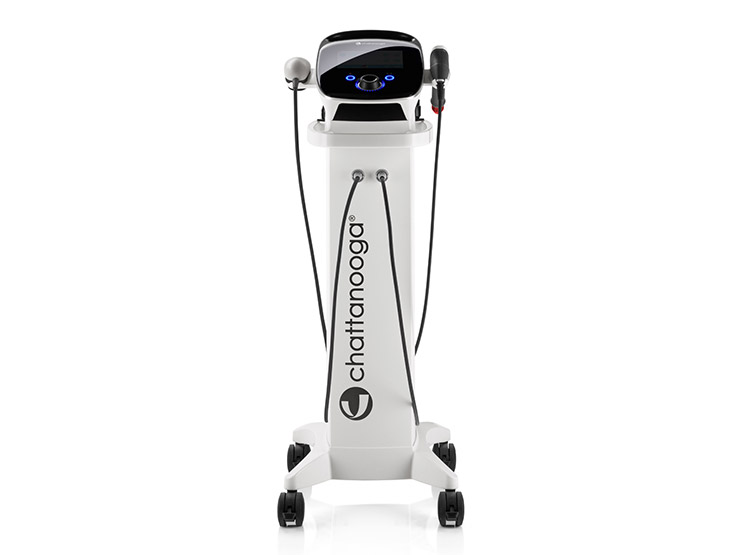

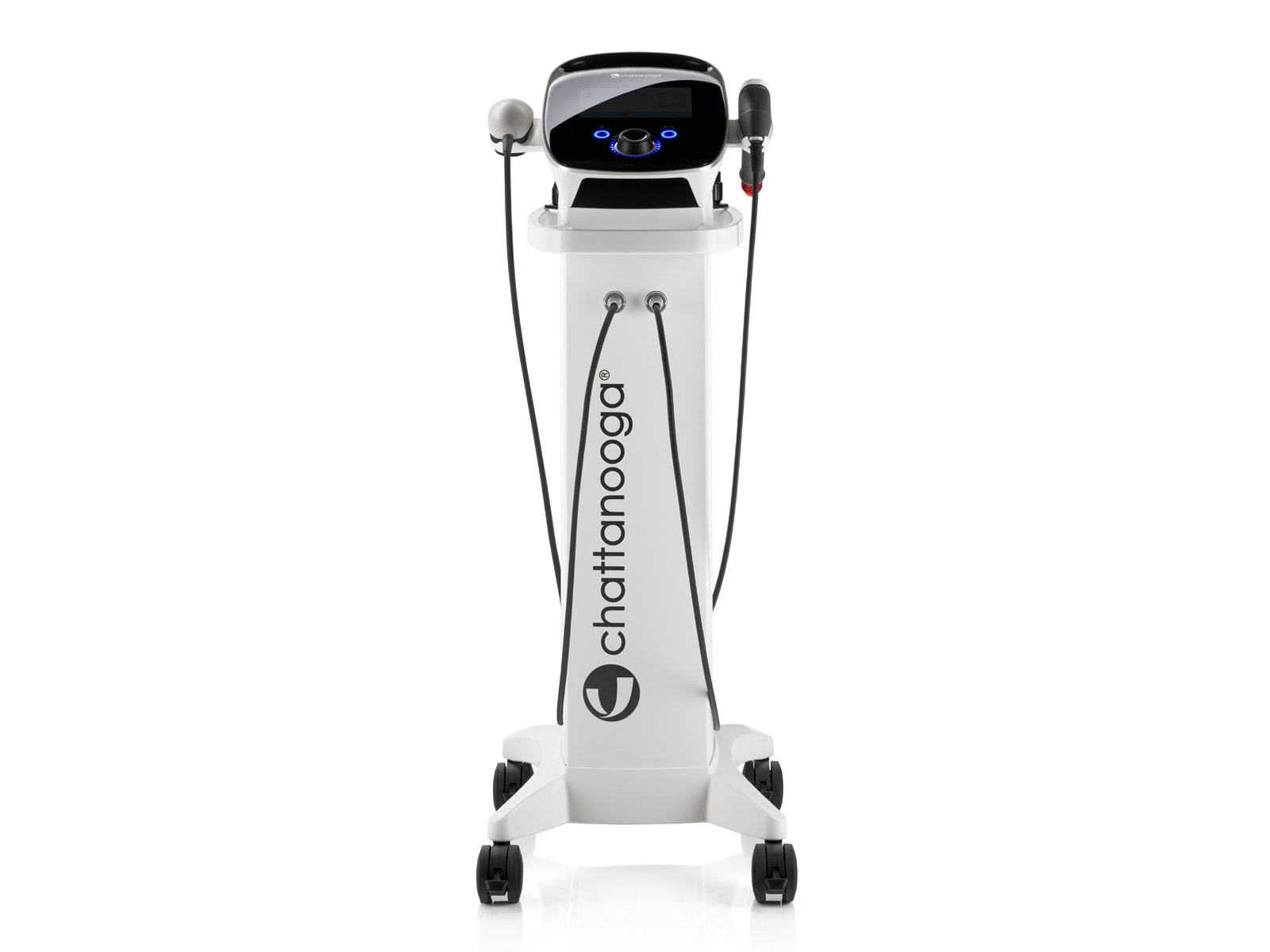

Chattanooga Shockwave Intelect RPW 2

Chattanooga Shockwave Intelect RPW 2

The new Intelect® RPW 2 combines streamlined design with ergonomics and patient comfort with ease-of-use, resulting in the most compact clinical unit currently on the market.

The Intelect® RPW 2 allows for the treatment of indications with radial, pneumatically-generated, low-energy acoustic waves, or ‘pressure pulses’.

The applied pressure pulse propagates radially within the tissue, generating a therapeutic effect.

The V-ACTOR® HF optional hand piece allows mechanical vibration for vibration massage.

Indications

• Achilles Tendinopathy
• Disorders of Tendon Insertions
• Pain & Inflammation in Orthopaedic Conditions
• Plantar Fasciitis
• Pulse Vibration Massage

Recommended treatment guidelines

• Localise the painful areas you plan to treat
• Select the most appropriate transmitters based on the treatment goal and targeted tissue
• Apply ultrasound water-based gel on the skin overlying the treatment area
• Always start with a lower level of intensity
• Perform a post-treatment test to see for better function and a decrease in pain

Key Features & Benefits

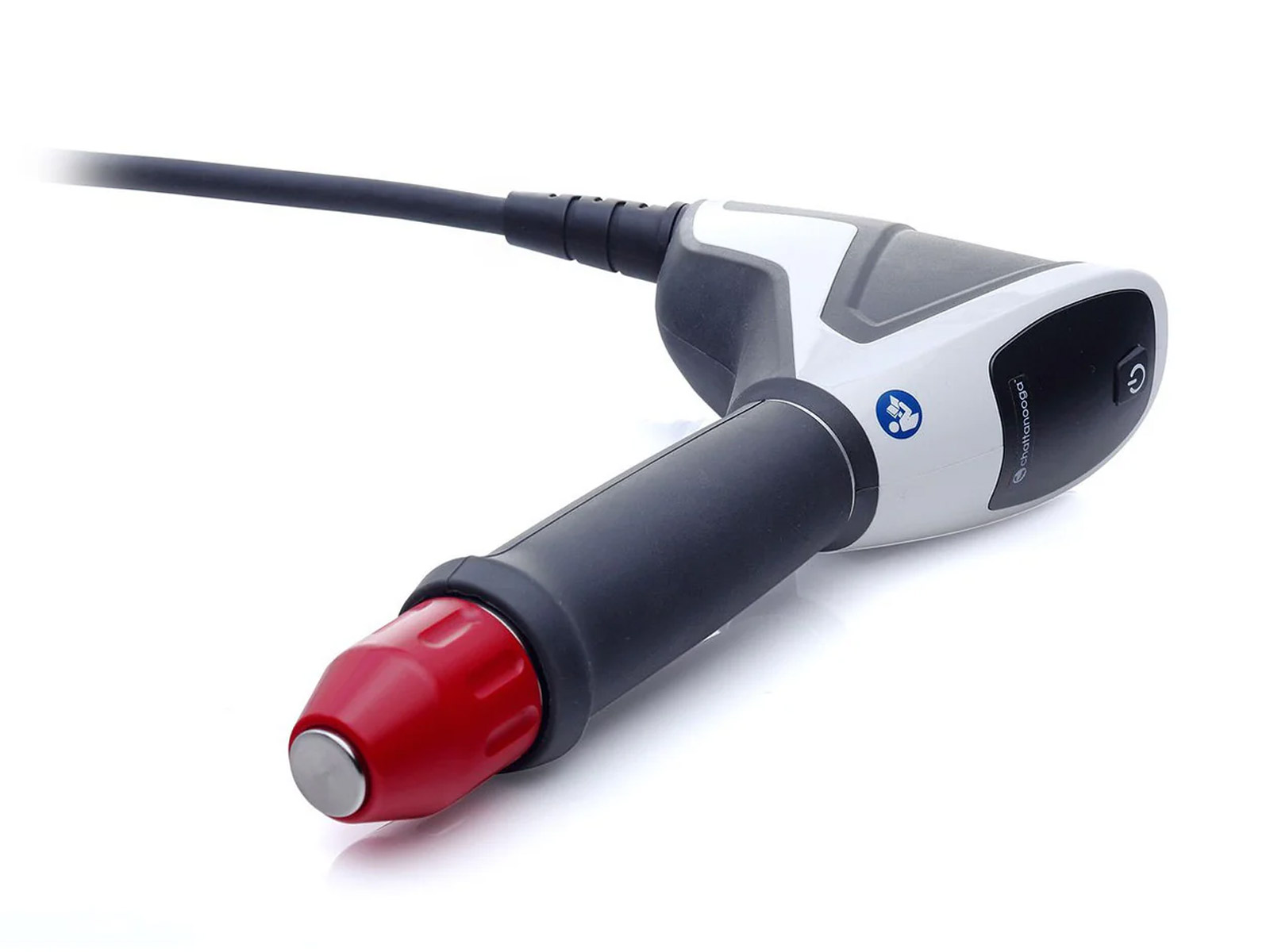

• New FALCON® Handpiece - Allowing lower Bar pressures for an increased range of indications and applicators.

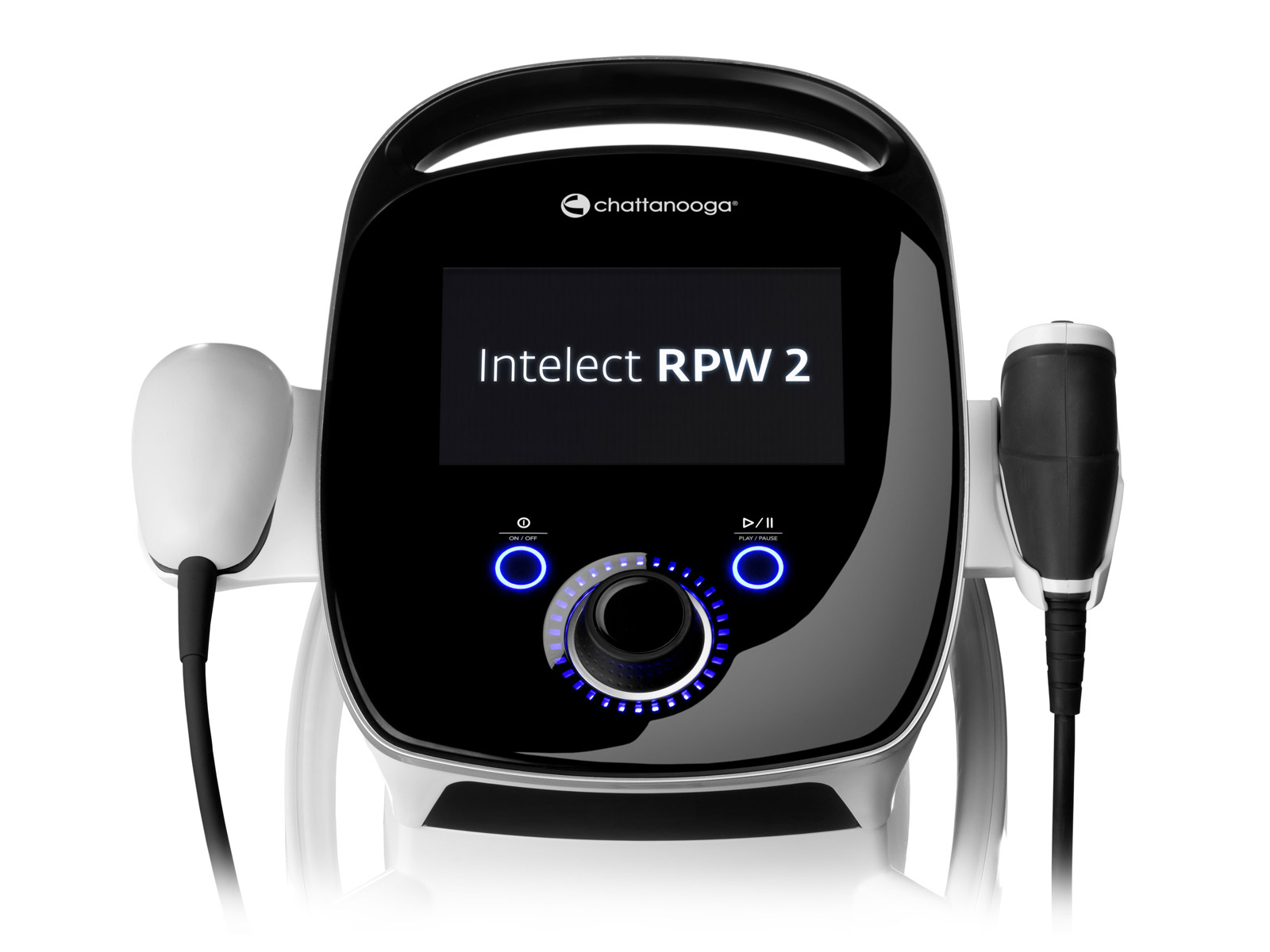

• Large graphic colour touch screen - High resolution 7” capacitive touch screen for greater customer experience.
• Suggested protocols library - Available at a finger click; treatment pictures, anatomical and pathological library, treatment guidelines.
• Comfort mode - Unique automatic energy ramp up designed to provide better patient comfort.
• V-ACTOR® HF - Vibration frequency up to 50Hz for Vibration therapy and muscle relaxation.
• Large choice of transmitters - 17 different transmitters available for tendinopathies, trigger points, spine and fascia treatments.
• Easy fit for every treatment room - Slim design 41x42x110cm (LxWxH), not a lot of space needed for this new RPW generation.
• Ergonomic design - What you need close in hand: handpiece, transmitter tray, gel bottle, cable holders, soft pouch.
• Extended pressure range - The Falcon handpiece provides a greater pressure range from 0.3 to 5 bar, making it more comfortable for the patient and allowing Fascia and Spine treatments. NOTE: PERI-V-ACTOR® and SPINE-V-ACTOR® can only be used under 3 Bar pressure.

Standard Accessories Included

• D20-S D-ACTOR® 20 mm transmitter
• Ultrasound gel bottle - 250 ml
• Ro40 D-Actor® 'Beam' transmitter
• USB Drive Intelect Mobile 2
• FALCON handpiece
• Quick Start Guide Booklet Intelect RPW 2
• Transmitters tray Intelect RPW 2
• Gel bottle support cup Intelect RPW 2
• Intelect RPW 2 Pouch

Warranty

• Intelect Radial Pressure Wave Shockwave 2 Unit comes with 3-year warranty (Terms & conditions apply).
• Warranty for the handpiece is 2 years or 3 million shocks, whichever occurs first.
• Warranty for the shock transmitters is 1 year or 1 million shocks, whichever occurs first.
